Durable High Speed Bearings / Grooved Rolling Ball Bearing For Booster Pumps

Ask Lasest Price
Brand Name :	VCD
Model Number :	608 ZZ/2RS and 6203 ZZ/2RS
Certification :	ISO9001:2000
Supply Ability :	0.6 million pcs per month
Delivery Time :	30 days according to quantity

Add to Cart

Product Details
Company Profile

Durable High Speed Bearings / Grooved Rolling Ball Bearing For Booster Pumps

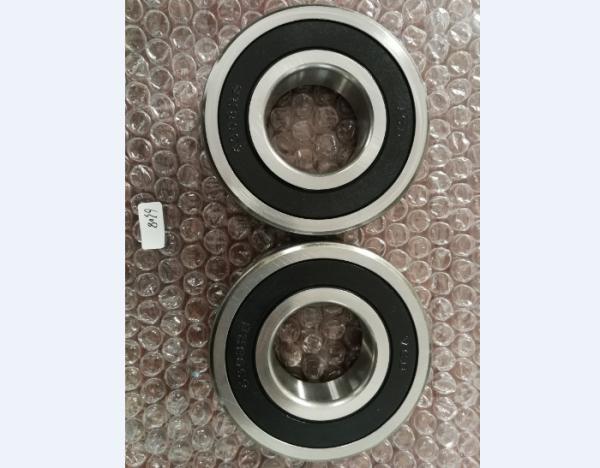

VCD's 608 and 6203 ball bearings are widely used in booster pumps.Deep groove ball bearings are particularly versatile.They are suitable for high and very high speeds, accommodate radial and axial loads in both directions and require little maintenance. Because deep groove ball bearings are the most widely used bearing type, they are available from SKF in many designs, variants and sizes.

608 ZZ/2RS	Dimension:8887mm
6203 ZZ/2RS	Dimension 174012mm

Vibration tolerance date of single bearing Tolerance um/s

Bore diancter	V			V1			V2			V3			V4
MM	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
3,4	80	44	44	60	35	32	48	26	22	31	16	15	28	10	10
5,6	110	72	60	74	48	40	58	36	30	35	21	18	32	11	11
7,8,9	130	96	80	92	66	54	72	48	40	44	28	24	38	12	12
10,12	160	120	100	120	80	70	90	60	50	55	35	30	45	14	15
15	210	150	120	150	100	85	110	78	60	65	46	35	52	18	18
17	210	150	120	150	100	85	110	78	60	65	46	35	52	25	25
20	260	190	150	180	125	100	130	100	75	80	60	45	60	25	25
22,25	260	190	150	180	125	100	130	100	75	80	60	45	60	30	32
28	260	190	150	180	125	100	130	100	75	80	60	45	60	35	40
30,32	300	240	190	200	150	130	150	120	100	90	75	60	70	35	40
35	300	240	190	200	150	130	150	120	100	90	75	60	70	42	45
40	360	300	260	240	180	160	180	150	130	110	90	80	82	50	50
45	360	300	260	240	180	160	180	150	130	110	90	80	82	60	60
50	420	320	320	280	200	200	210	160	160	125	100	100	95	70	70

Bearing vibration and noise level can be divided into 4 levels: Z1, Z2, Z3 and Z4. We can detect by

S0910-1 instrument. According to the special requirement, we can use BVT-1 detection, and be divided

into the V1, V2, V3 and V4.Specific data are listed below. Customer’s order should be indicated the

vibration and nosie level requirements.

The maximum vibration acceleration of single bearing. Tolerance dB

Bore diancter	Diameter series(0)				Diameter series(2)					Diameter series(3)
MM	Z	Z1	Z2	Z3	Z	Z1	Z2	Z3	Z4	Z	Z1	Z2	Z3	Z4
5	37	36	34	30	38	37	34	32	-	39	37	35	33	-
6	37	36	34	30	38	37	34	32	-	39	37	35	33	-
7	39	38	35	31	40	38	36	34	-	-	-	-	-	-
8	39	38	35	31	40	38	36	34	-	-	-	-	-	-
9	41	40	36	32	42	40	37	35	-	-	-	-	-	-
10	43	42	38	33	44	42	39	35	30	37	44	40	37	32
12	44	43	39	34	45	43	39	35	30	47	45	40	37	32
15	45	44	40	35	46	44	41	36	31	48	46	42	38	33
17	46	44	40	35	47	45	41	36	31	49	47	42	38	33
20	47	45	41	36	48	46	42	38	33	50	48	43	39	34
22	47	45	41	36	48	46	42	38	33	50	48	43	39	34
25	48	46	42	38	49	47	43	40	36	51	49	44	41	37
28	49	47	43	39	50	48	44	41	37	52	50	45	42	38
30	49	47	43	39	50	48	44	41	37	52	50	45	42	38
32	50	48	44	40	51	49	45	42	38	53	51	46	43	39
35	51	49	45	41	52	50	46	43	39	54	52	47	44	40
40	53	51	46	42	54	52	47	44	40	56	54	49	45	41
45	55	53	48	45	56	54	49	46	43	58	56	51	47	44
50	57	54	50	47	58	55	51	48	45	60	57	53	49	46
